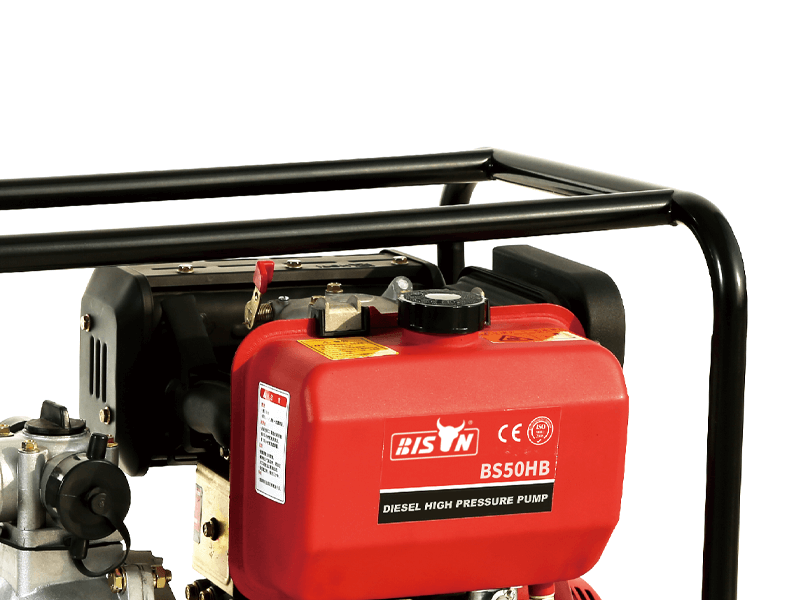

50HB
diesel water pumpdiesel high pressure water pump
30days dispatch
after receive your deposit
1-3 year warranty
above & betond - extended warranty
free returns
return policy within 7 days
5 star service
customers rate our service 5 stars
30days dispatch
after receive your deposit
1-3 year warranty
above & betond - extended warranty
free returns
return policy within 7 days
5 star service
customers rate our service 5 stars
| Model | BS40H/HE/L/LE | BS50H/HE/L/LE |
| Suction/Discharge Port Diameter(mm) | 40(1.5”) | 50(2”) |
| Cont. capacity(m*/h) | 12 | 18 |
| Cont. Head(M) | 42M | 45 |
| Self-priming Time(s/4m) | 120 | 180 |
| Max.Suction Head(M) | 6M | 6M |
| Fuel Tank capacity(L) | B:small fuel tank(3.5L) L:large fuel tank(12.5L) | B:small fuel tank(5L) L:large fuel tank(12.5L) |
| Engine Type | 178F/FE | 186FA/FAE |
| Starting system | F:Recoil start FE:Electric start | F:Recoil start FE:Electric start |
| Engine Type | 1-Cylinder,4-Stroke, Air-cooled,Veritical | 1-Cylinder,4-Stroke, Air-cooled,Veritical |
| Broke*stroke(mm) | 78*62 | 86*72 |
| Displacement(L) | 0.296 | 0.418 |
| Compression Ratio | 20:01 | 19.5:01 |
| Rated Rotation Speed(rpm) | 3600 | 3600 |
| Rated power(kw) | 4 | 6.6 |
| Lube oil capacity(L) | 1.1 | 1.65 |
| Fuel Type | Diesel oil,0#(summer),-10#(winter) | Diesel oil,0#(summer),-10#(winter) |
| Lube Type | SAE10W30(above CD grade) | SAE10W30(above CD grade) |
| Size(LxWxH)(mm) | 570*465*670 | 655*480*720 |
| Net Weight(kg) | 47 | 67 |
We are factory
Yes, we do support, we have an experienced R&D team, Welcome to place OEM/ODM order to us.
Our company's culture is "Quality is our culture!" All our products with 12 months GUARANTEE, never need to worry about the after-sale service, we will always be here to support your business!
Yes, you can. Welcome to place sample order to check our quality. We do believe our high-quality products will bring more orders for you from your clients.
Leave a message and send an inquiry to us, tell us you need our catalog, our sales will reply to you within 6 hours.
We have PayPal, MIC pay, L/C, T/T payment terms options, do business with us, your money will be safe, your business will be safe!
