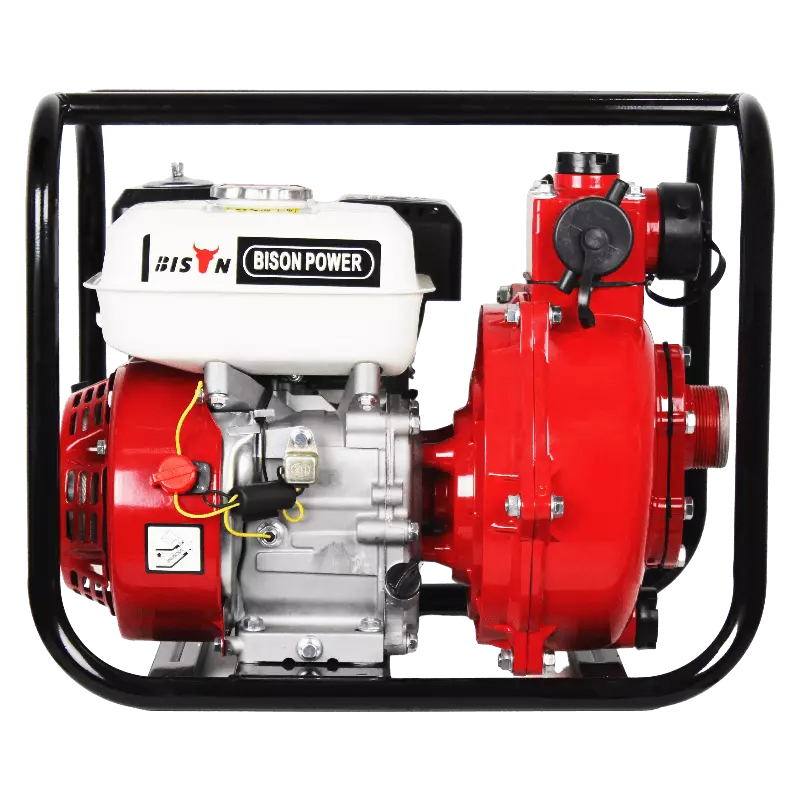

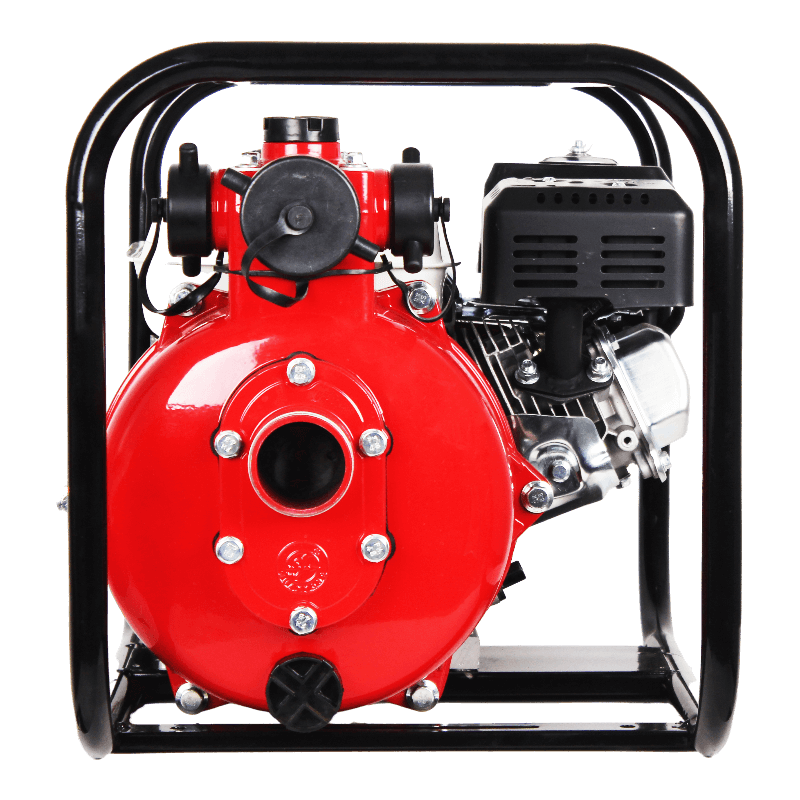

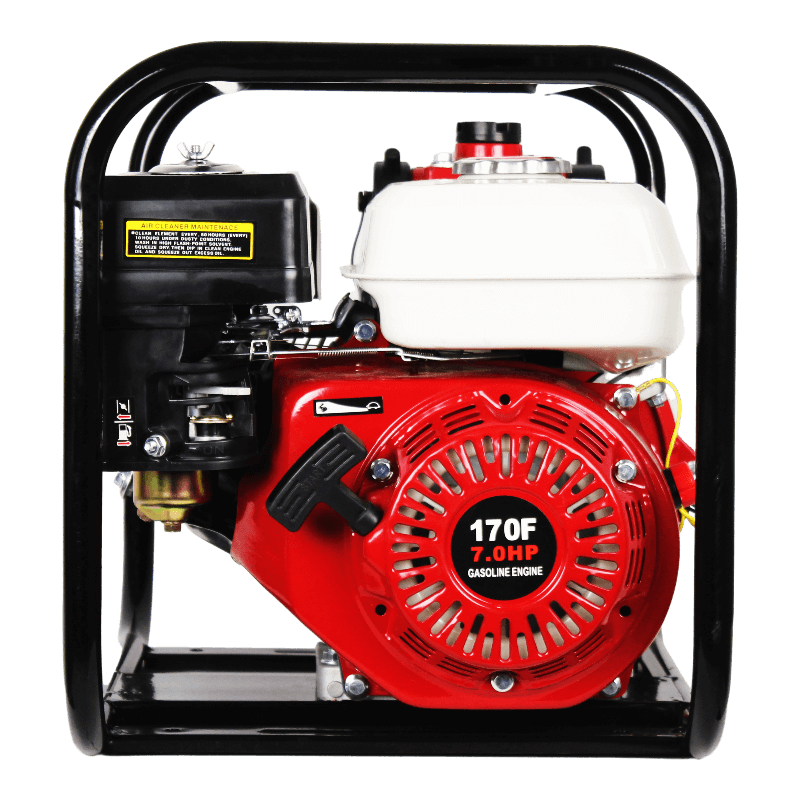

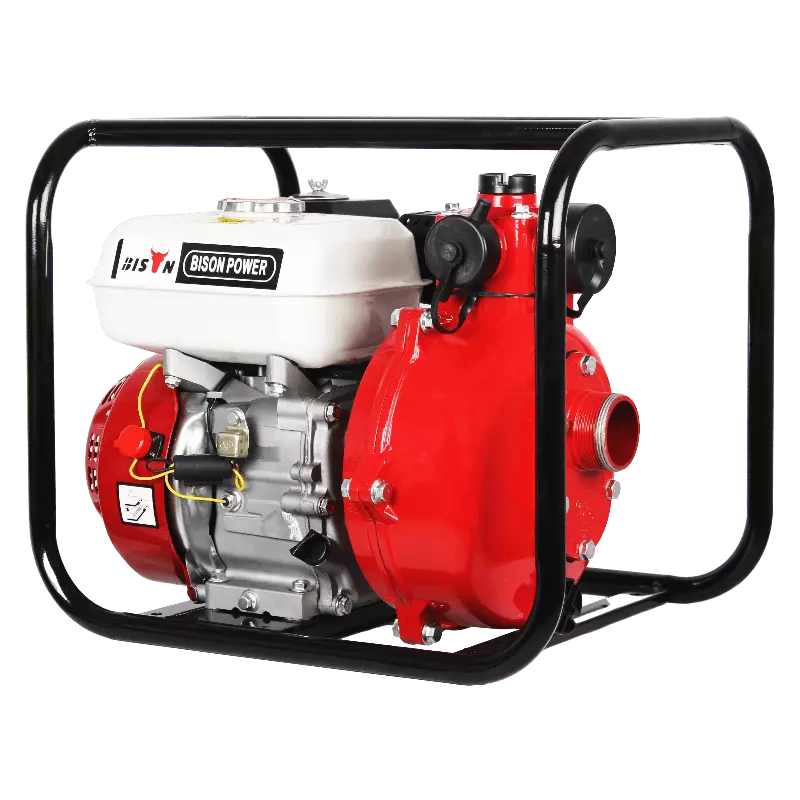

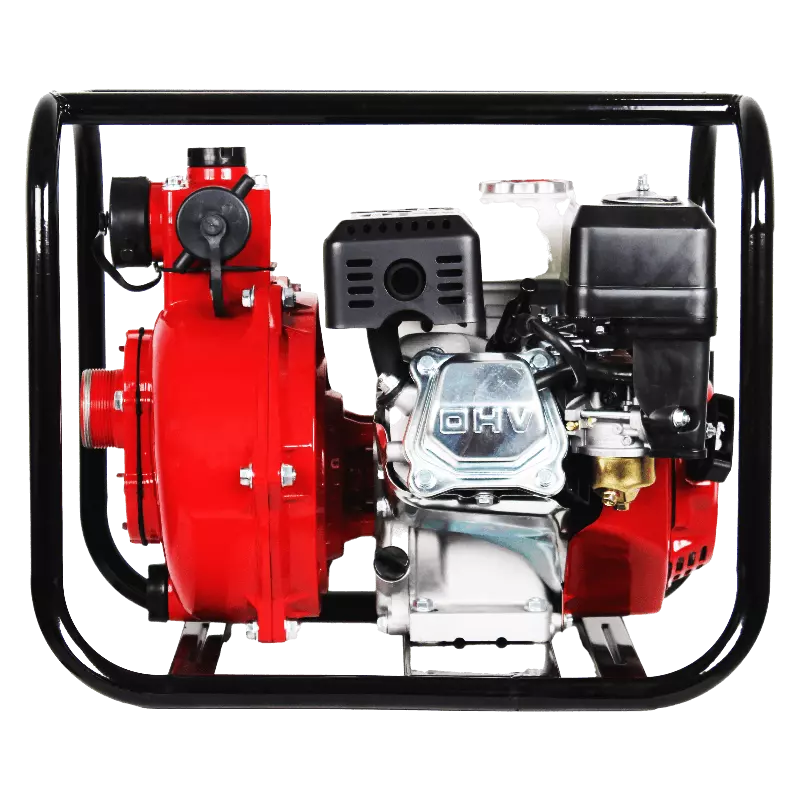

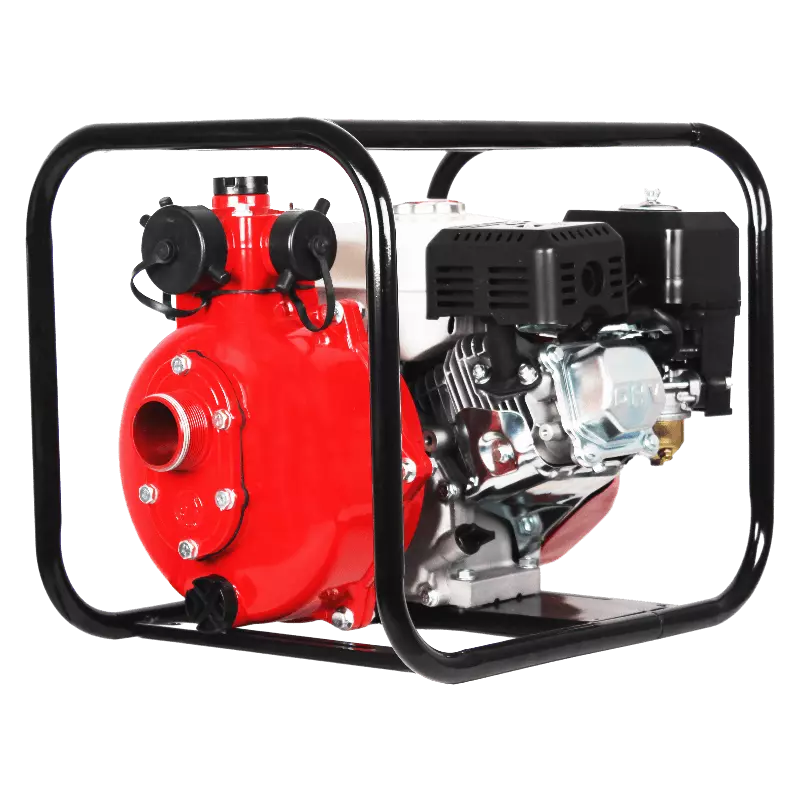

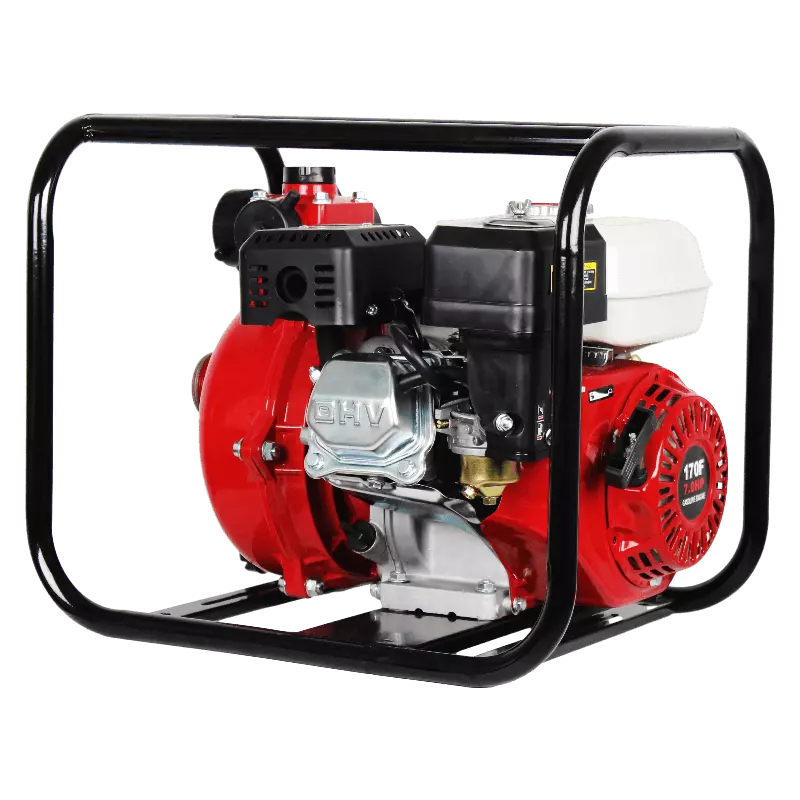

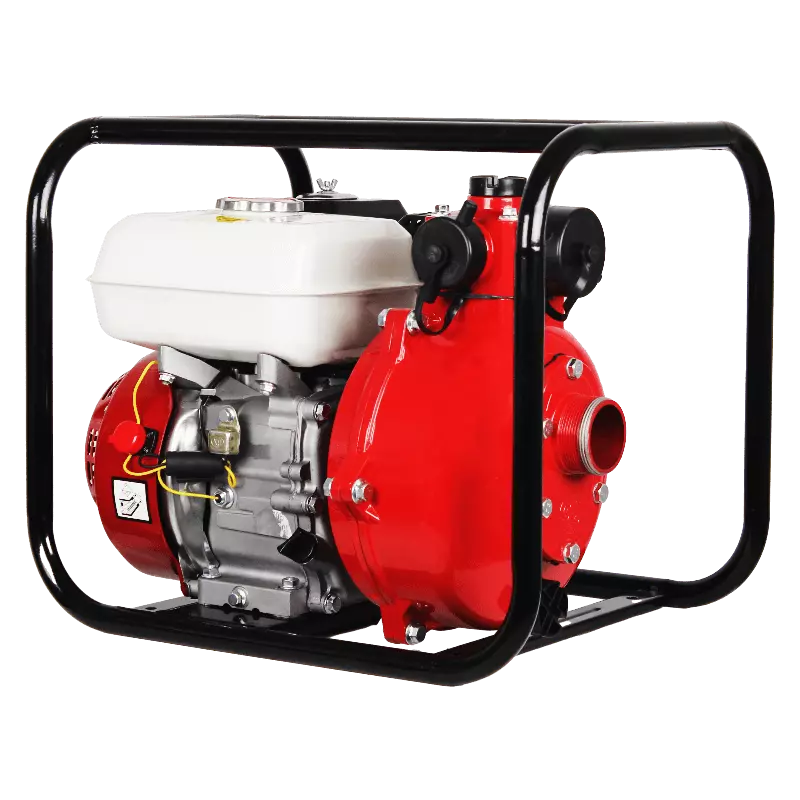

HIGH PRESSURE PUMP | BS20H | BS30H |
Inlet and outlet size(mm) | 50(2.0”) | 80(3.0”) |
Pump lift(m) | 50 | 25 |
Suction height(m) | 7 | 7 |
Flux(m3/h) | 42 | 75 |
Impeller | Single | Single |
Model | BS170F | BS190F |
Type | Single Cylinder, Air-cooled, 4-stroke | |
Displacement(cc) | 210 | 420 |
Max power(Kw) | 5.1 | 8.3 |
Rated power(Kw) | 4.5 | 8.1 |
Rated speed(RPM) | 3600 | 3600 |
Bore x stroke(mm) | 70*55 | 90*66 |
Compression ratio | 8.5 | 8.5 |
lgnition system | T.C.I | T.C.I |
Fuel tank volume(L) | 3.6 | 6.5 |
Mass weight(kg) | 28 | 33 |
Size(LxWxH)(mm) | 510*385*425 | 510*385*425 |
20GP | 330 | 330 |
40HQ | 828 | 828 |
We are factory
Yes, we do support, we have an experienced R&D team, Welcome to place OEM/ODM order to us.
Our company's culture is "Quality is our culture!" All our products with 12 months GUARANTEE, never need to worry about the after-sale service, we will always be here to support your business!
Yes, you can. Welcome to place sample order to check our quality. We do believe our high-quality products will bring more orders for you from your clients.
Leave a message and send an inquiry to us, tell us you need our catalog, our sales will reply to you within 6 hours.
We have PayPal, MIC pay, L/C, T/T payment terms options, do business with us, your money will be safe, your business will be safe!
